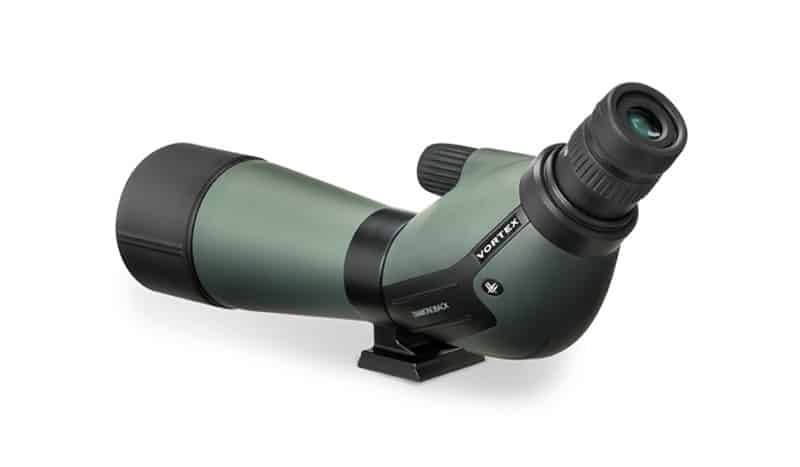

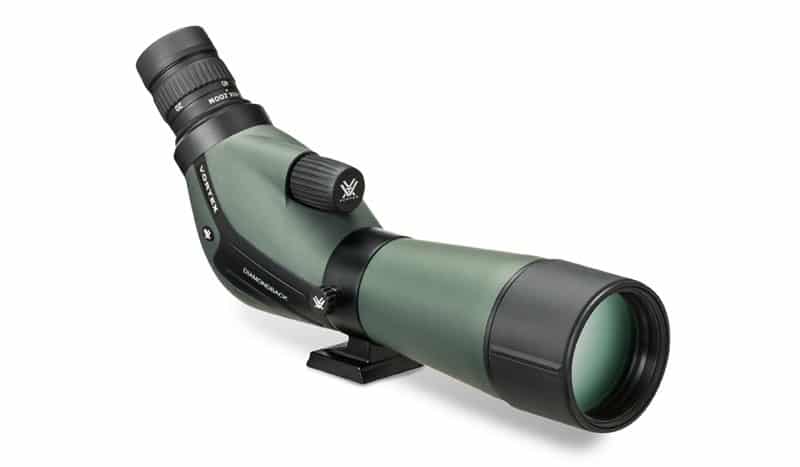

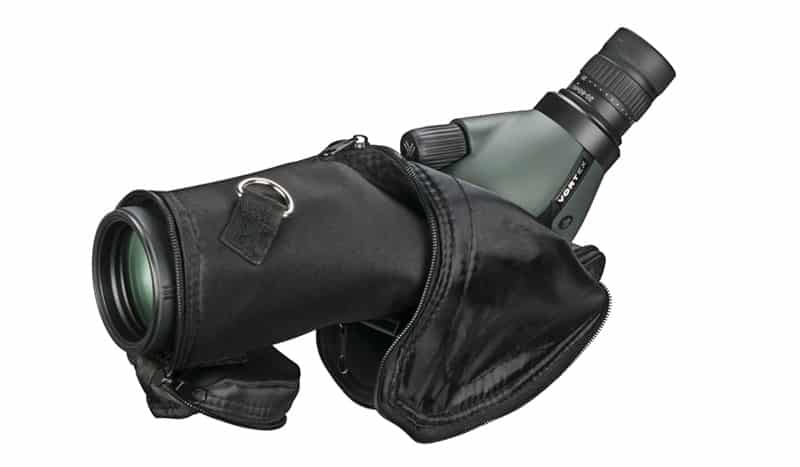

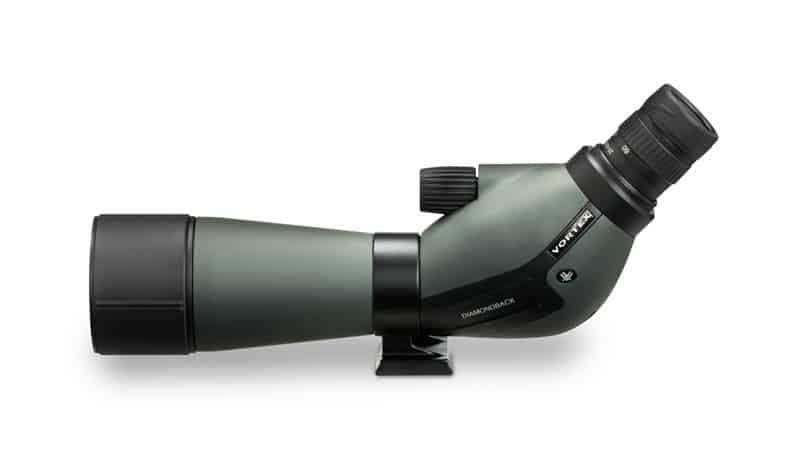

Born into the bloodline of our popular Diamondback family, this spotter delivers outstanding performance?clearly a superb choice when you need a heavyweight performer in a light, compact package. The Diamondback optics guarantee a bright image throughout the magnification range and, as true to all Diamondback optics, the rugged construction stands up to rough use in the field.
Including:?VIP Unconditional Lifetime Warranty
$ 548.85
Born into the bloodline of our popular Diamondback family, this spotter delivers outstanding performance?clearly a superb choice when you need a heavyweight performer in a light, compact package. The Diamondback optics guarantee a bright image throughout the magnification range and, as true to all Diamondback optics, the rugged construction stands up to rough use in the field.
| OPTICAL FEATURES | |
| XR? Fully Multi-Coated | Proprietary coatings increase light transmission with multiple anti-reflective coatings on all air-to-glass surfaces. |
| Dielectric Prism Coatings | Multi-layer prism coatings provide bright, clear, color-accurate images. |
| CONSTRUCTION FEATURES | |
| Porro Prism | Offers maximum image quality and performance in a traditional design. |
| Angled Body Design | Valued for allowing an overall lower mounting height which maximizes stability in wind, offers greater comfort when glassing for extended periods, and permits the use of a smaller, lighter tripod. |
| Waterproof | O-ring seals prevent moisture, dust and debris from penetrating the spotting scope for reliable performance in all environments. |
| Fogproof | Nitrogen gas purging delivers fogproof, waterproof performance. |
| CONVENIENCE FEATURES | |
| Adjustable Eyecup | Twists up and down to precise, intermediate settings to maximize custom fit for comfortable viewing with or without eyeglasses. |
| Built-in Sunshade | Reduces glare and shields the objective lens from raindrops and snow. |
| Rotating Tripod Ring | Allows rotation of the eyepiece to a sideways position, providing adjustable viewing angles |
Specifications:
| Magnification | 20-60 x |
| Objective Lens Diameter | 60 mm |
| Linear Field of View | 114-51 feet/1000 yards |
| Angular Field of View | 2.2-1 degrees |
| Close Focus | 20 feet |
| Eye Relief | 17-14 mm |
| Exit Pupil | 3-1 mm |
| Length | 14 inches |
| Weight | 33.8 ounces |
| Product Manual (PDF) | Download |
VIP Unconditional Lifetime Warranty
We are ALWAYS here for you!
| Manufacturer | Vortex Optics |
|---|
