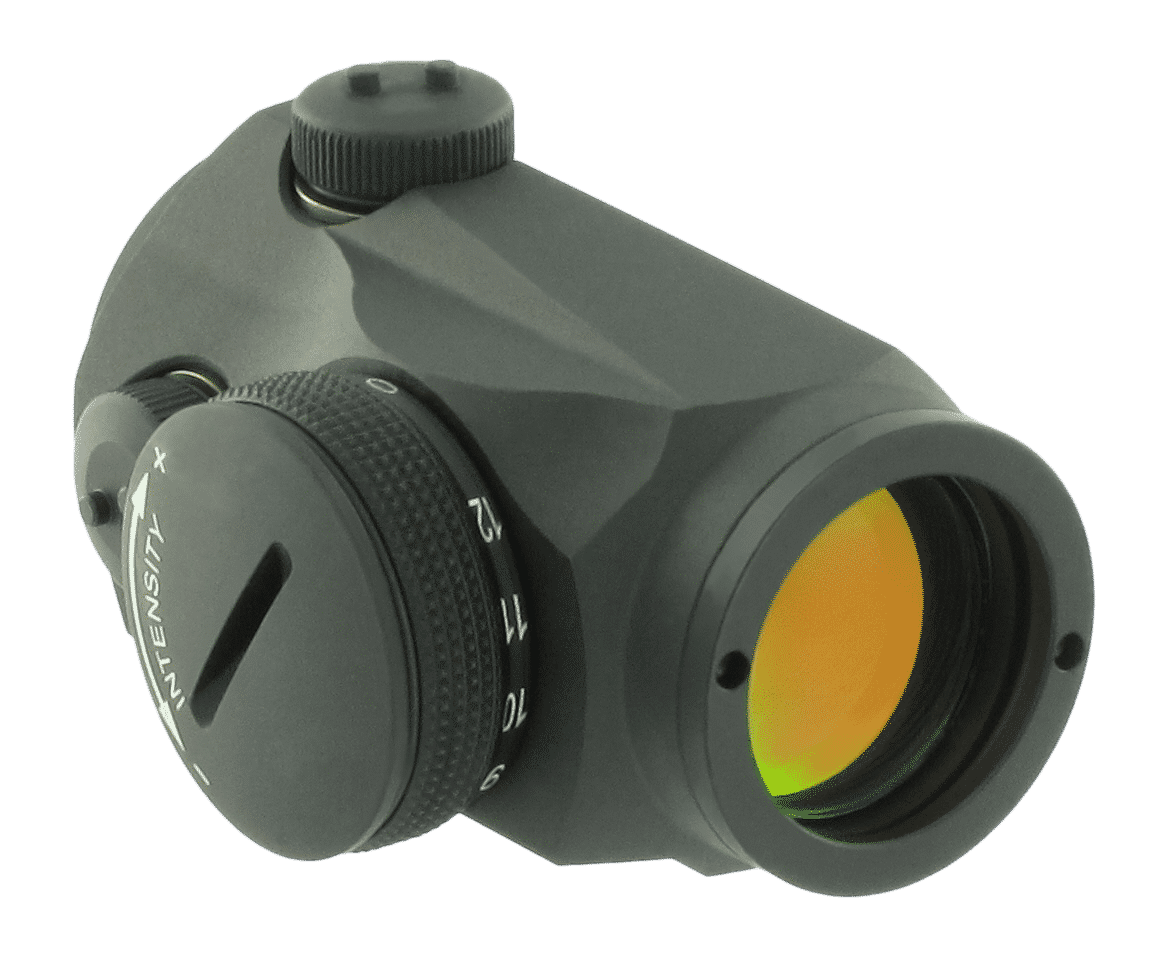

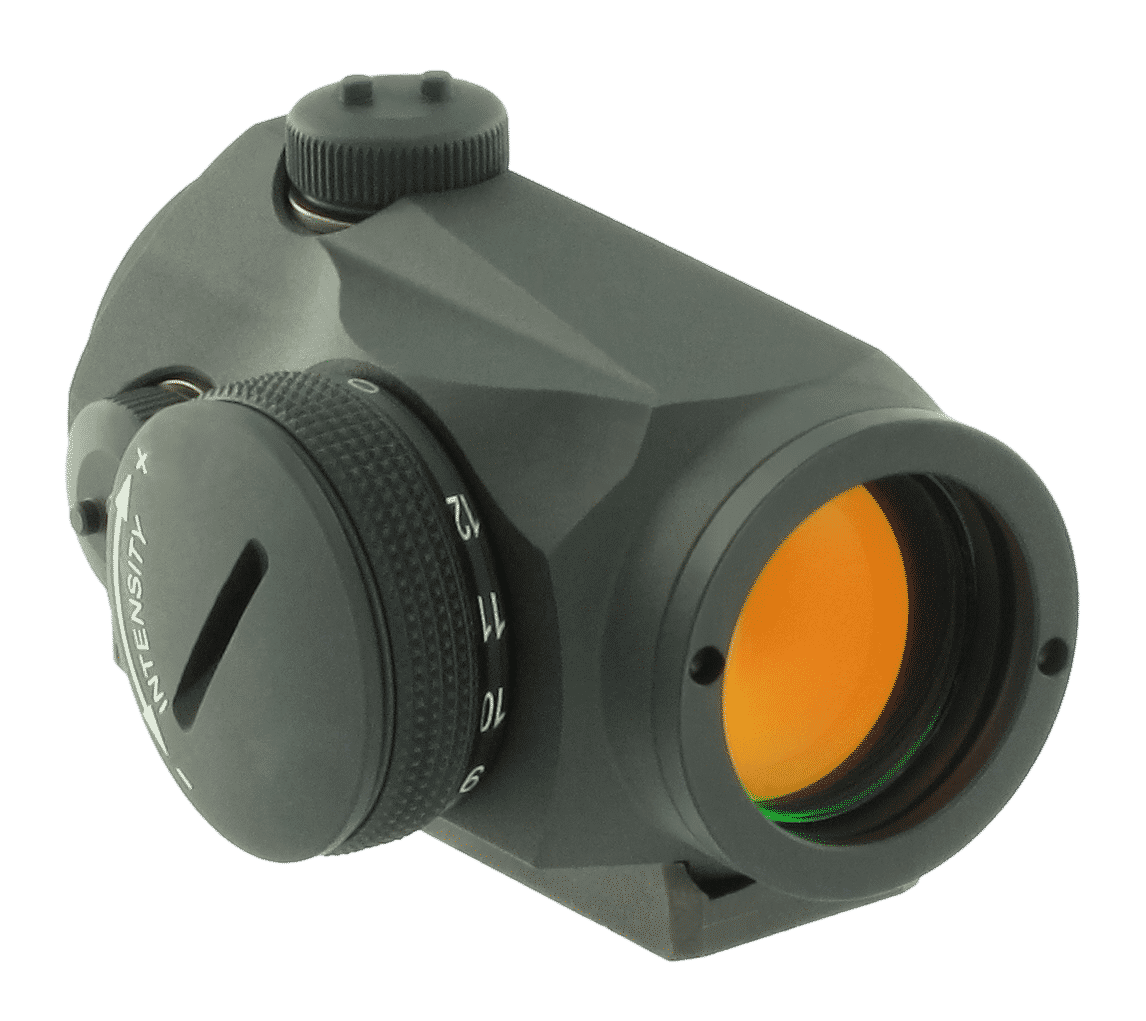

No matter what your mission, the size and weight of your equipment is a critical factor. With the Aimpoint? Micro T-1, Aimpoint has introduced an aiming system that provides the performance of our full-sized sights in the smallest package possible.
Price:
$ 753.45
Out of stock
Description
Specifications
Overview: No matter what your mission, the size and weight of your?equipment is a critical factor. With the Aimpoint? Micro T-1, Aimpoint has introduced an aiming system that provides the?performance of our full-sized sights in the smallest package?possible. Since its introduction in 2007, the Aimpoint? Micro T-1 has?become very popular worldwide due to its size, light weight and?robust build quality.

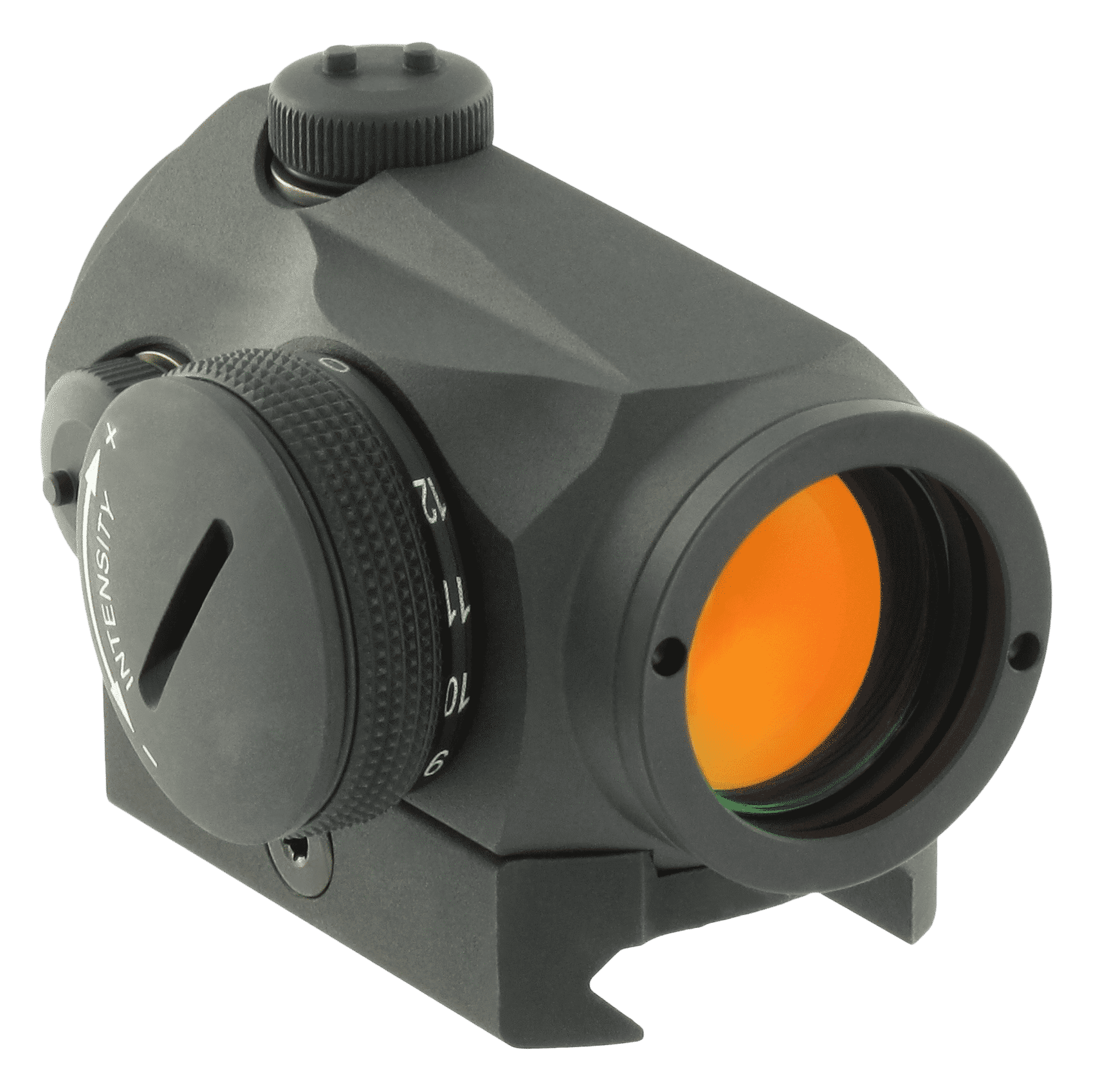

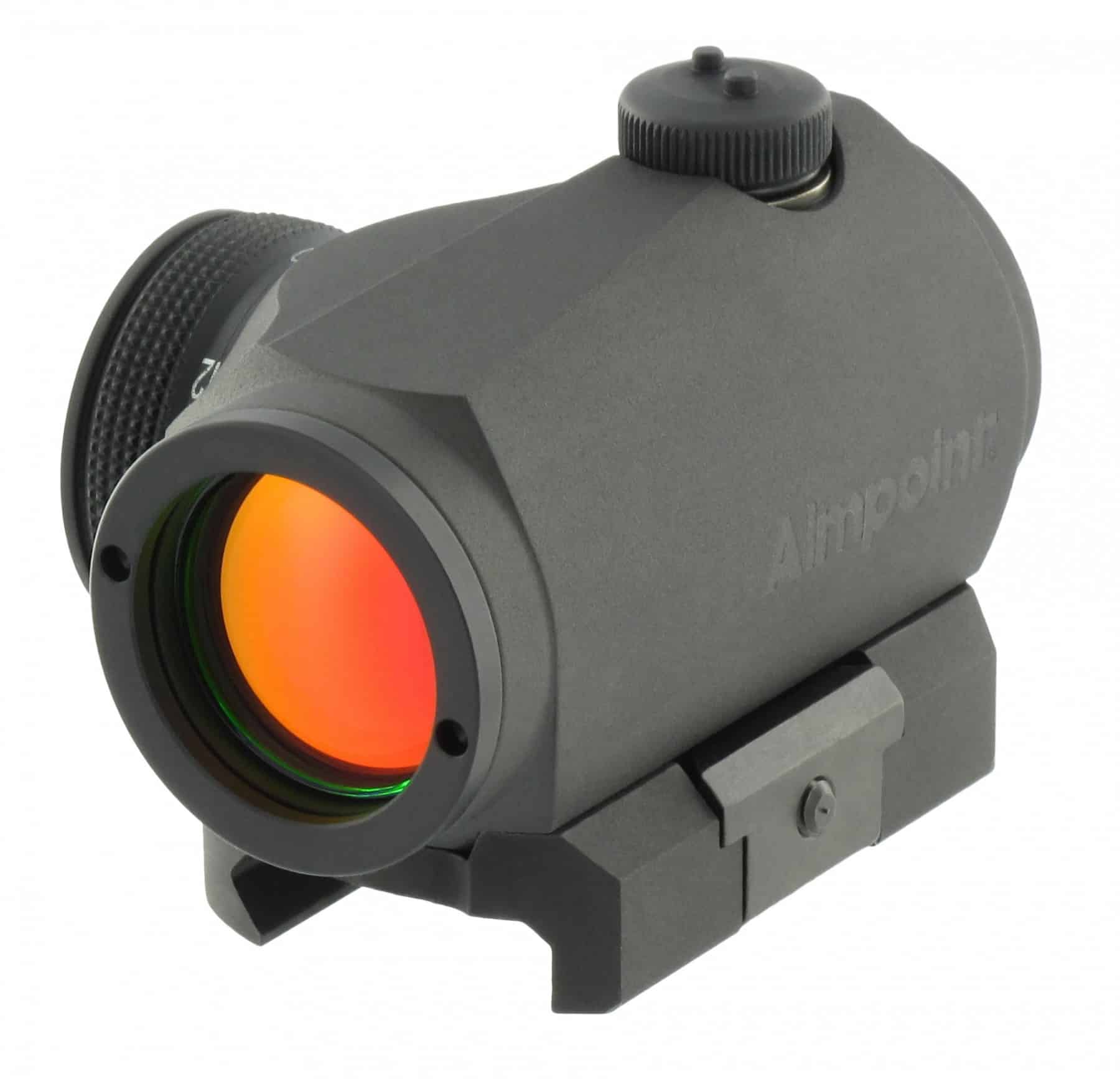

Complete and Ready to Mount: The standard configuration of the Aimpoint? Micro T-1 contains?the sight, a Picatinny mount and bikini rubber lens covers.
Unique Features:
Ideal for rifles, carbines, shotguns, submachine guns, and?handguns
Weight 3.7 oz. (105g) including mount, sight only 3.0 oz. (84g)
1X (non-magnifying) parallax free optic
Compatible will all generations of Night Vision Devices (NVD)
4 night vision compatible settings and 8 daylight settings ? one extra bright for use with laser protection glasses or in bright?desert sunlight
Integral Picatinny-style base allows easy attachment to any rail
Patent pending mount is keyed to the sight body to absorb?recoil
New ACET technology allows 50,000 hours (over 5 years) of?constant operation with one battery
Available in 2 dot sizes (2 and 4 MOA)
Hard anodized non-reflective finish
Submersible to 80 feet (25 meters)
Precision adjustments for windage and elevation: top of?protective caps fits into holes on adjustment screws ? no other?tool required
Use as a standalone sight or piggybacked on larger magnifying,?thermal, or night vision optics
Technical Specifications:
General Specifications: Art.No: 12417 (2MOA), 11830 (4MOA)
Optical Specifications:
Operating principle: Reflex
Collimator sight with LED
Optical magnification: 1x
Aiming dot size: 2 or 4 MOA
Dot intensity: Visible against a
background luminance of 0,1 to 55 000lx
Optical signature: No optical
signature is visible at 10 meter distance, front side, on appropriate settings with NVD 3
Dot color: Peak Wavelength: 650 ? 10nm
NVD compatible: Yes
Optical coating: Anti-reflex, all
surfaces and multi-layer. NVDCompatible 1, 2, 3
Clear aperture: 20 mm
Eye relief: Unlimited
Power Source:
Battery type: 3V lithium battery, type CR2032.
Battery life - Day time use: 5 years (50 000h) of continuous use at pos. 8 and over 10 months at pos. 10.?Responds to >500 000 hours at NVD setting (pos. 2)
Power intensity: 4 NVD and 8 Daylight, of which 1 extra bright
Physical Specifications:
Length sight only: 62 mm (2,4")
Length std conf: 69 mm (2,7")
Width: 41 mm (1,6")
Height sight only: 36 mm (1,4")
Height std conf: 41 mm (1,6")
Weight sight only (incl battery): 84g, ( 3,0 oz)
Weight std conf: 116 g (4,1 oz) incl. Lens Covers and Mount
Housing material: High Strength Aluminum
Housing finish and color: Matte black
Material mount and spacer std conf: High Strength Aluminum
Surface treatment: Hard anodized, matte
Height of optical axis - sight andmount: 18 mm (0,7") over top surface of Picatinny/Weaver Rail
Height of optical axis - sight, mount and Micro spacer XX: Spacer low: 48 mm (1,9") over top surface of Picatinny/Weaver Rail
Height of optical axis - sight, mount and Micro spacer ZZ: Spacer high: 57 mm (2,2") over top surface of Picatinny/Weaver Rail
Adjustment: Range ?1 m at 100 meters (?1 yds at 100 yds) in windage and elevation, 1 click = 13 mm at 100 meters = 10 mm at 80 meters = 1/2 at 100 yds
Enviromental Specifications:
Temperature range operation: -45?C to 71?C (-49?F to 160?F)
Temperature range storage: -51?C to 71?C (-60?F to 160?F)
Temperature shock: Operable after a temperature shock between -45?C and +71?C. Duration: 4h of Hot +71?C, 4h of Cold -45?C. Cycling: 3 times
Shock: Operable before and after shock. Limits: X-axis: 500 g, 0.7 ? 1.1 ms (3 shocks), Y-axis: 40g ?4g, 11 ?1ms (2 shocks in each direction, Z-axis: 40g ?4g, 11 ?1ms, 2 shocks in each direction. Functional during exposure (room temperature)
Vibration: Operates despite vibration.?
Limits: Vibration, sinusoidal in a frequency range of 10-150 Hz. Frequency: 10-30 Hz, ?1.587 mm, Frequency: 30-150 Hz. 5.75g, 1 octave/min Chemical resistance: Withstands occasional contamination of: Hydraulic oil (FSD 8407, Tryckolja 021), Lubricating oil (FSD 8127, Motorolja 5W/30), Lubricating oil (FSD 8220, Sm?rjfett 220), Lubricating oil (Break Free), Fuels (FSD 8612, Diesel fuel oil), Solvents/cleaning (FSD)
Mechanical Interface: Mounting: N/A Max distance between rings mm/": N/A
Mounts Addons:

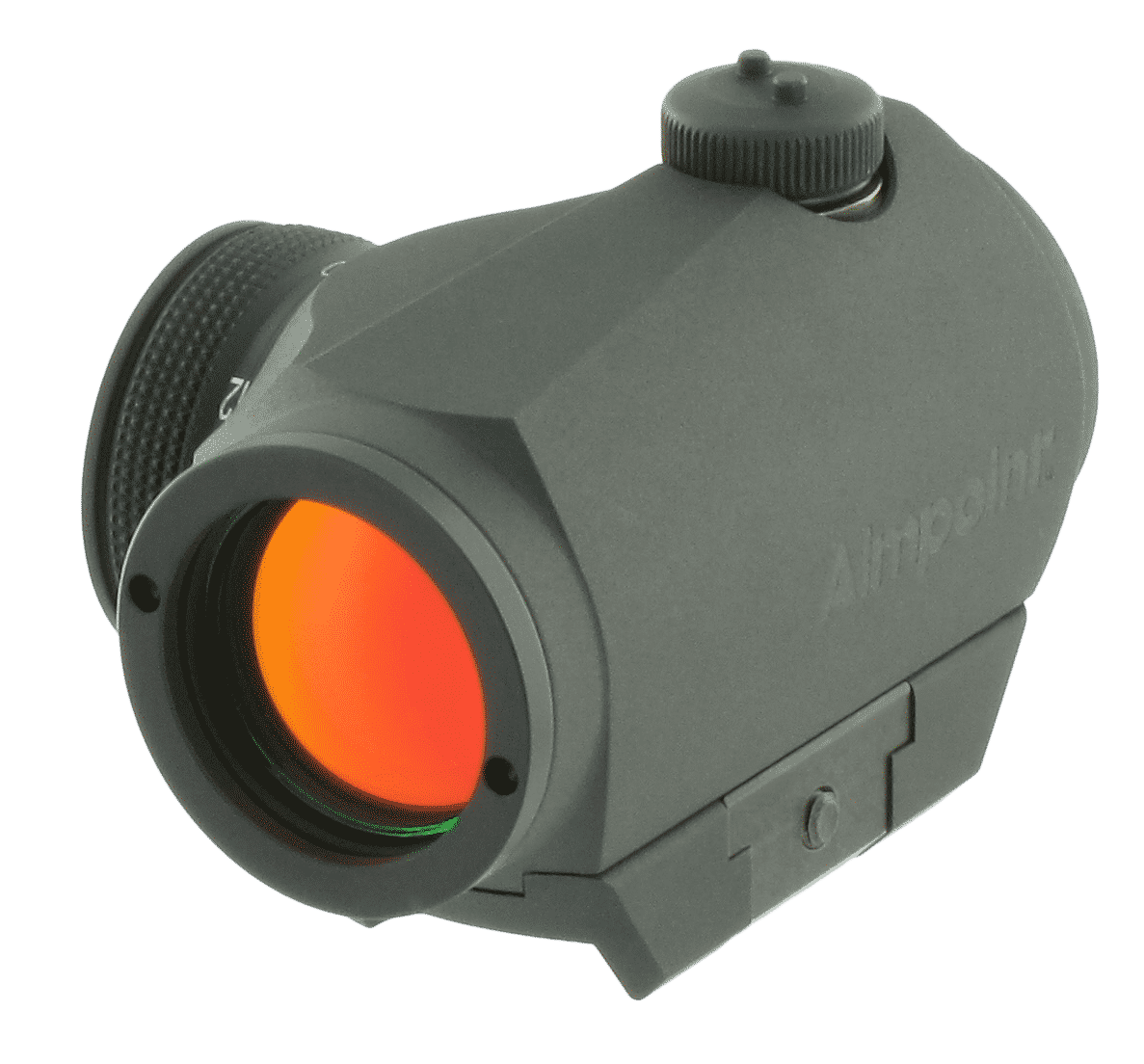

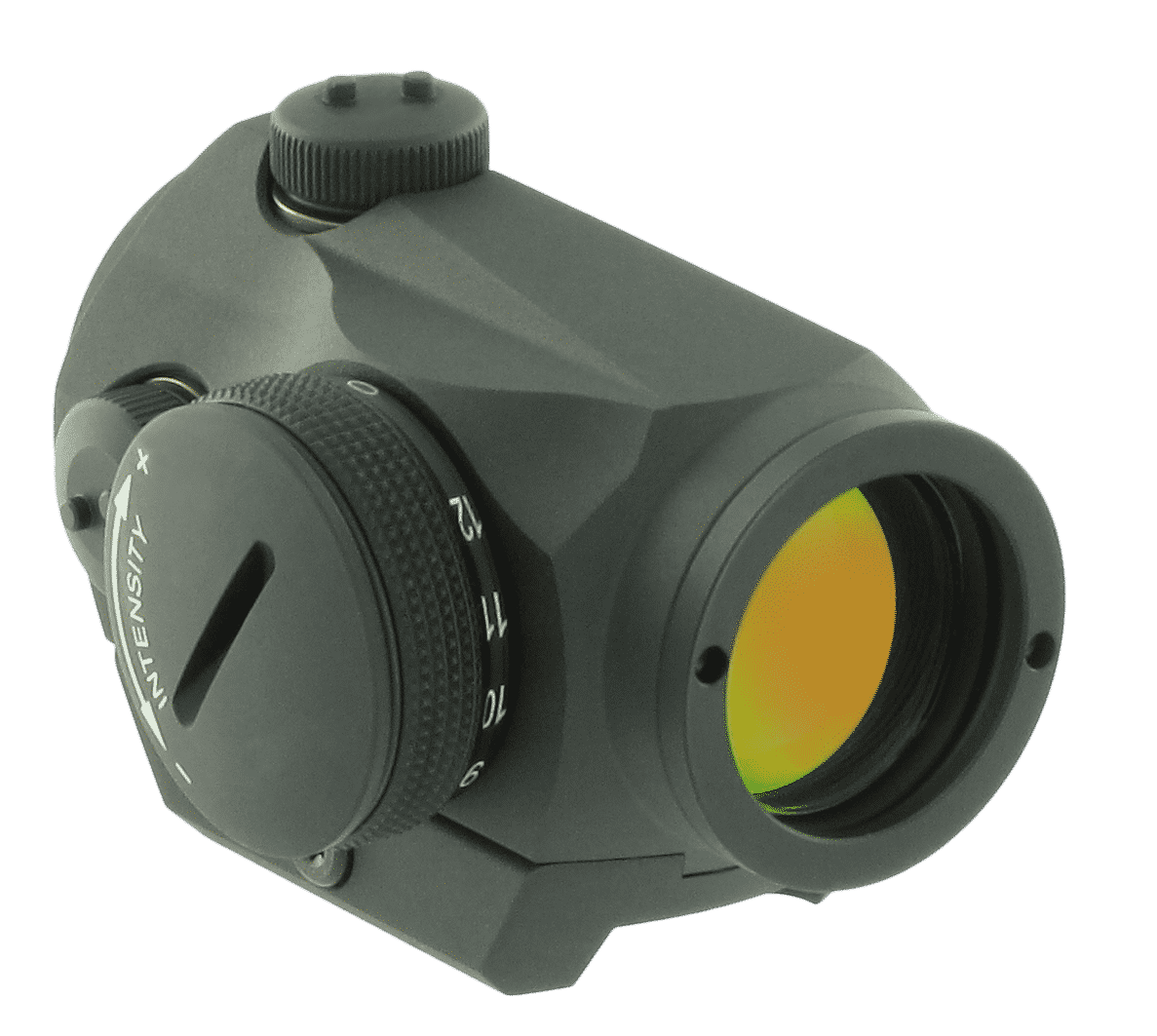

Micro Mount 11mm Dovetail: (+85$ - Out Of Stock)
Fits most of the 11 mm Dovetail Bases ranging from 10-12,5 mm.
Screws and Micro Tool included.
Micro Mount LRP:?(+85$)
Lever Release Picatinny for Micro sights.
Returns to zero after dismounting.
Screws, Micro Tool and Thread sealer included.

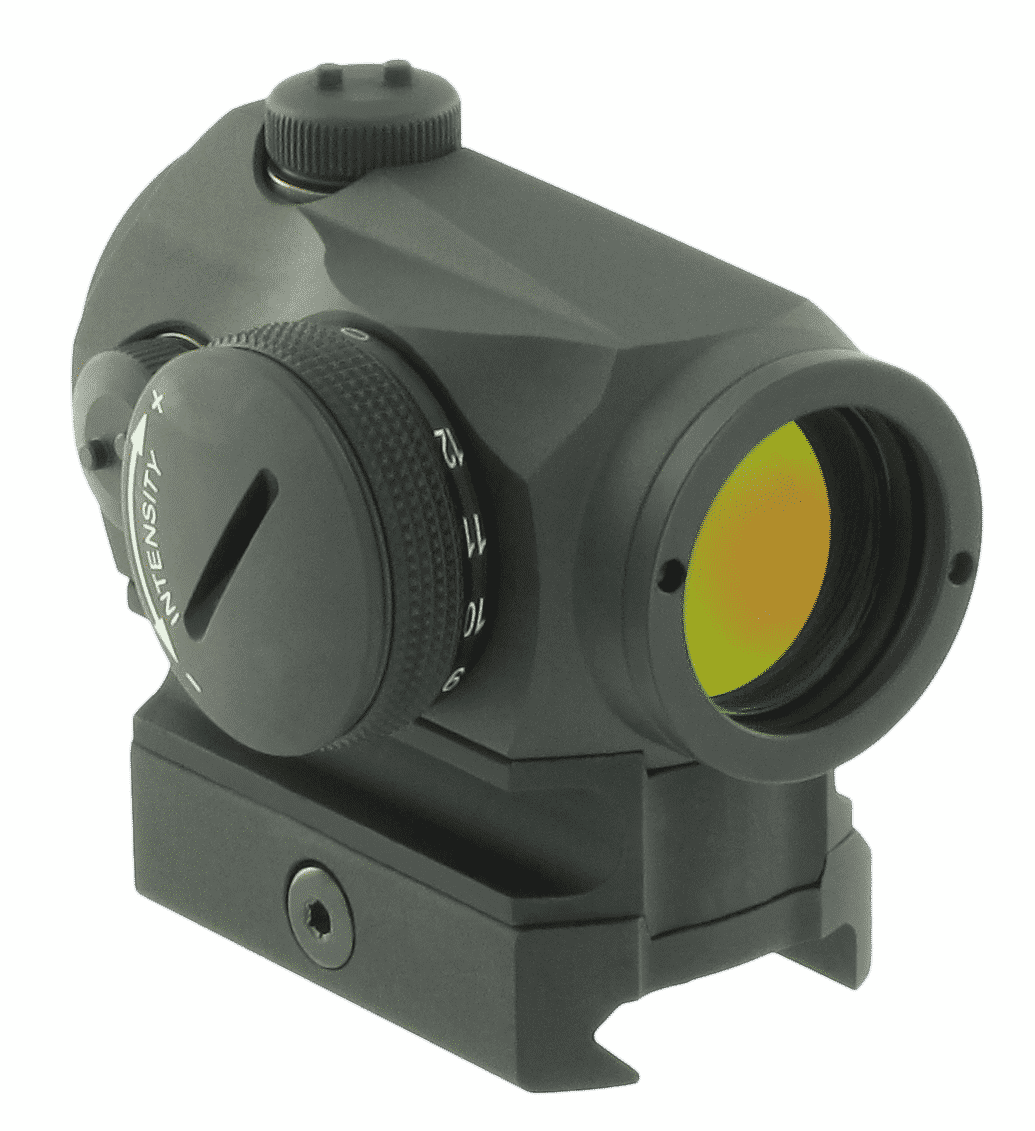

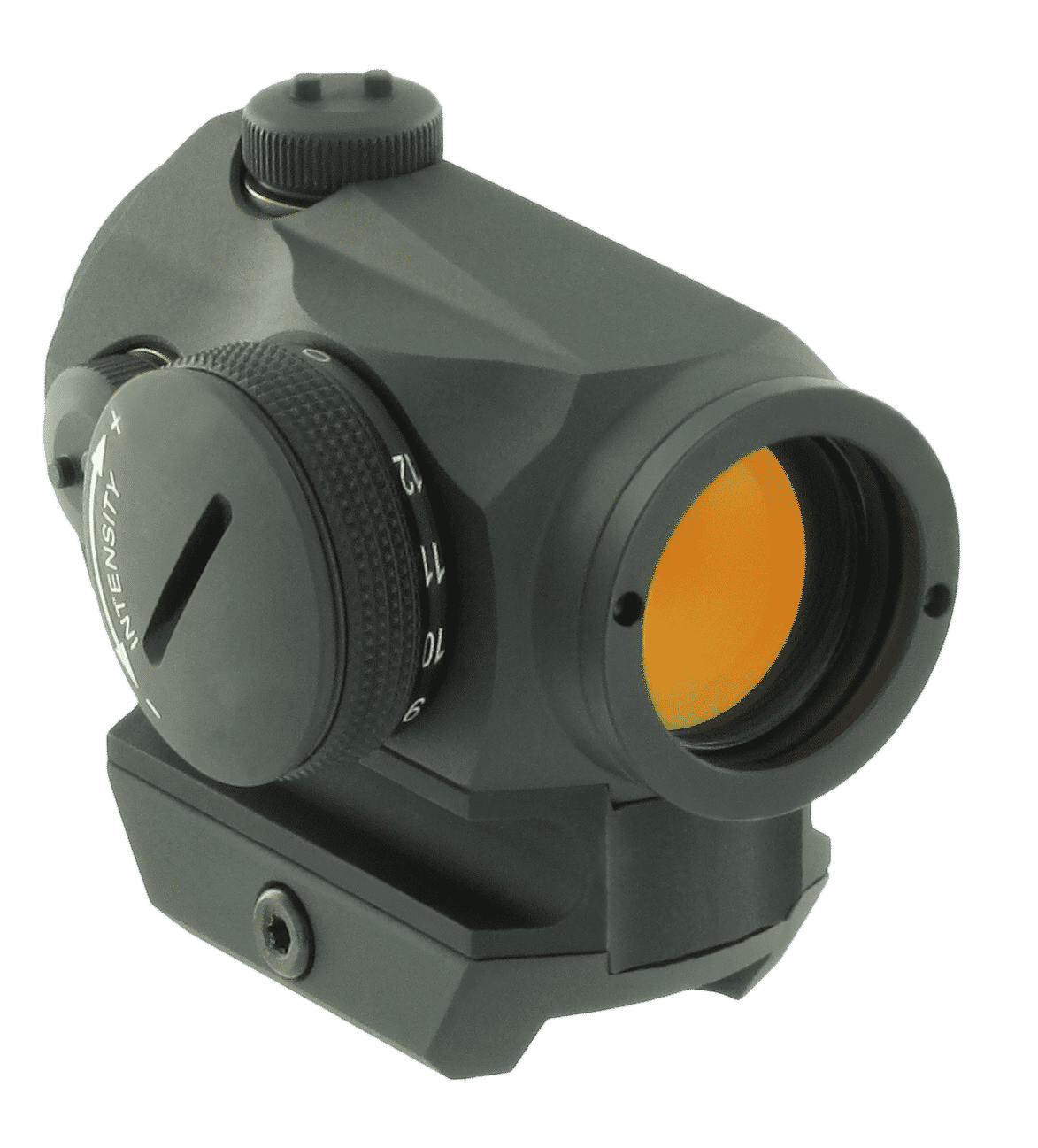

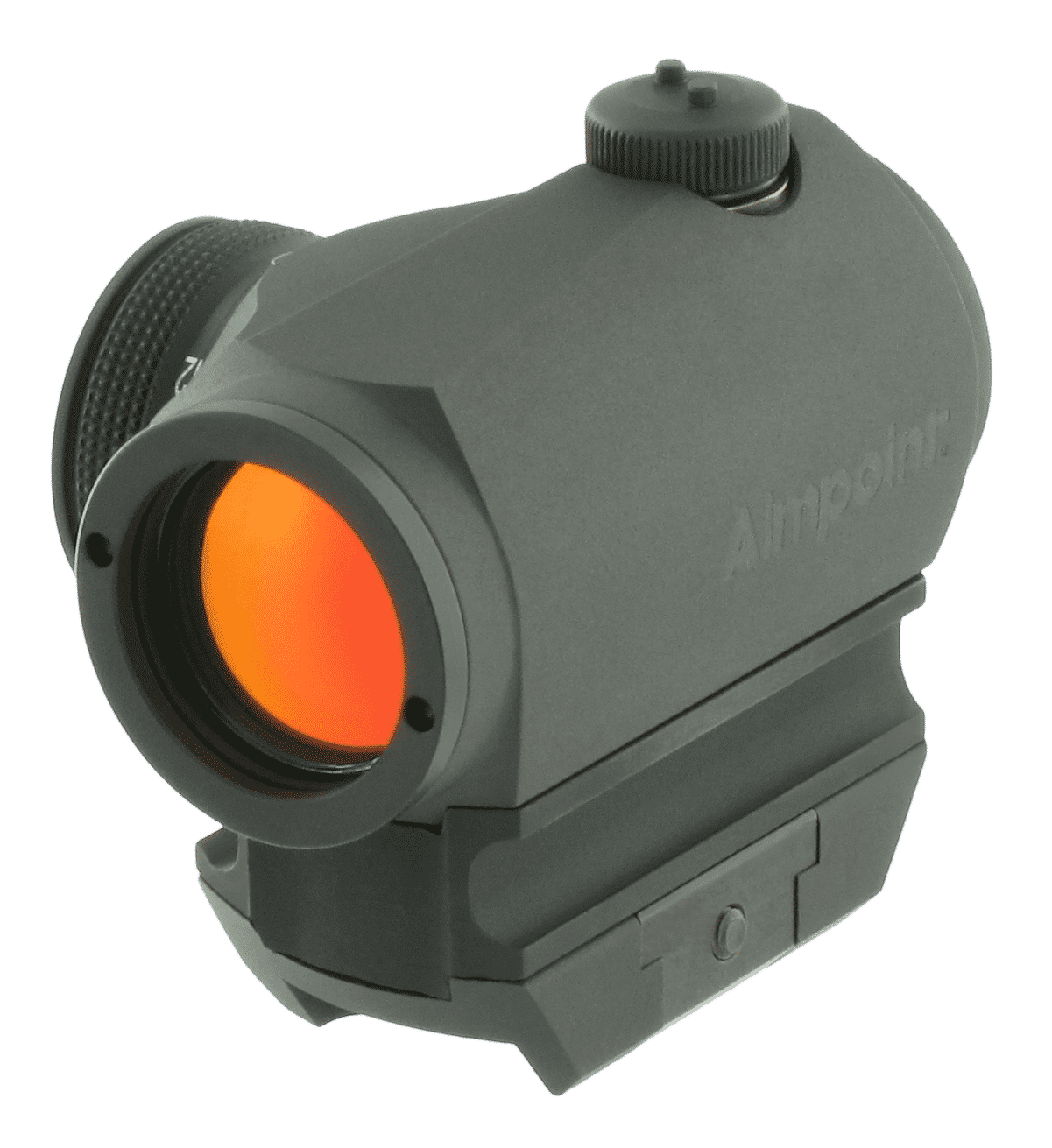

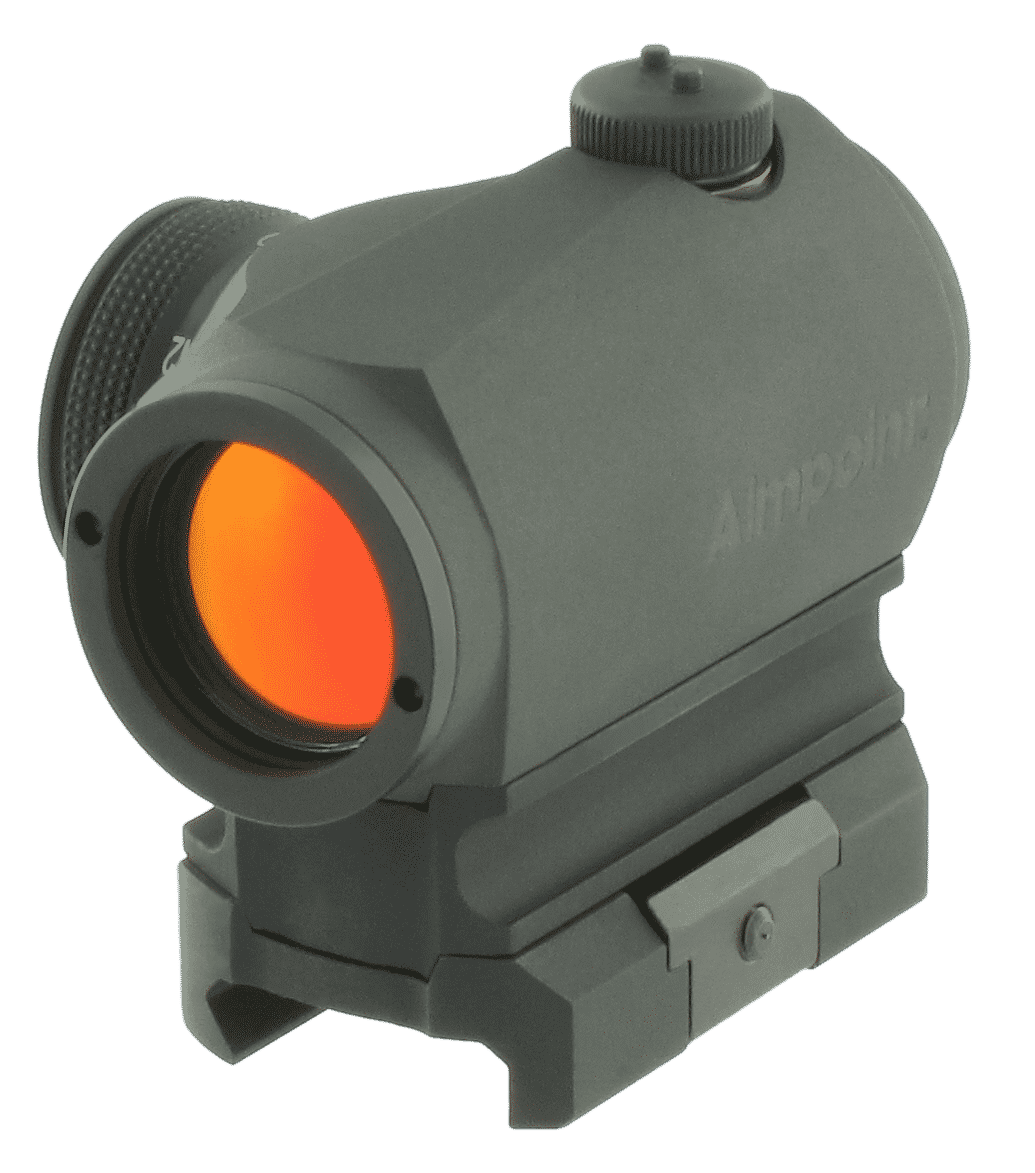

Micro Spacer Low - 30mm: (+45$)
Raises height of optical axis to 30 mm.
Four screws (torx), Micro Tool and thread sealer included.

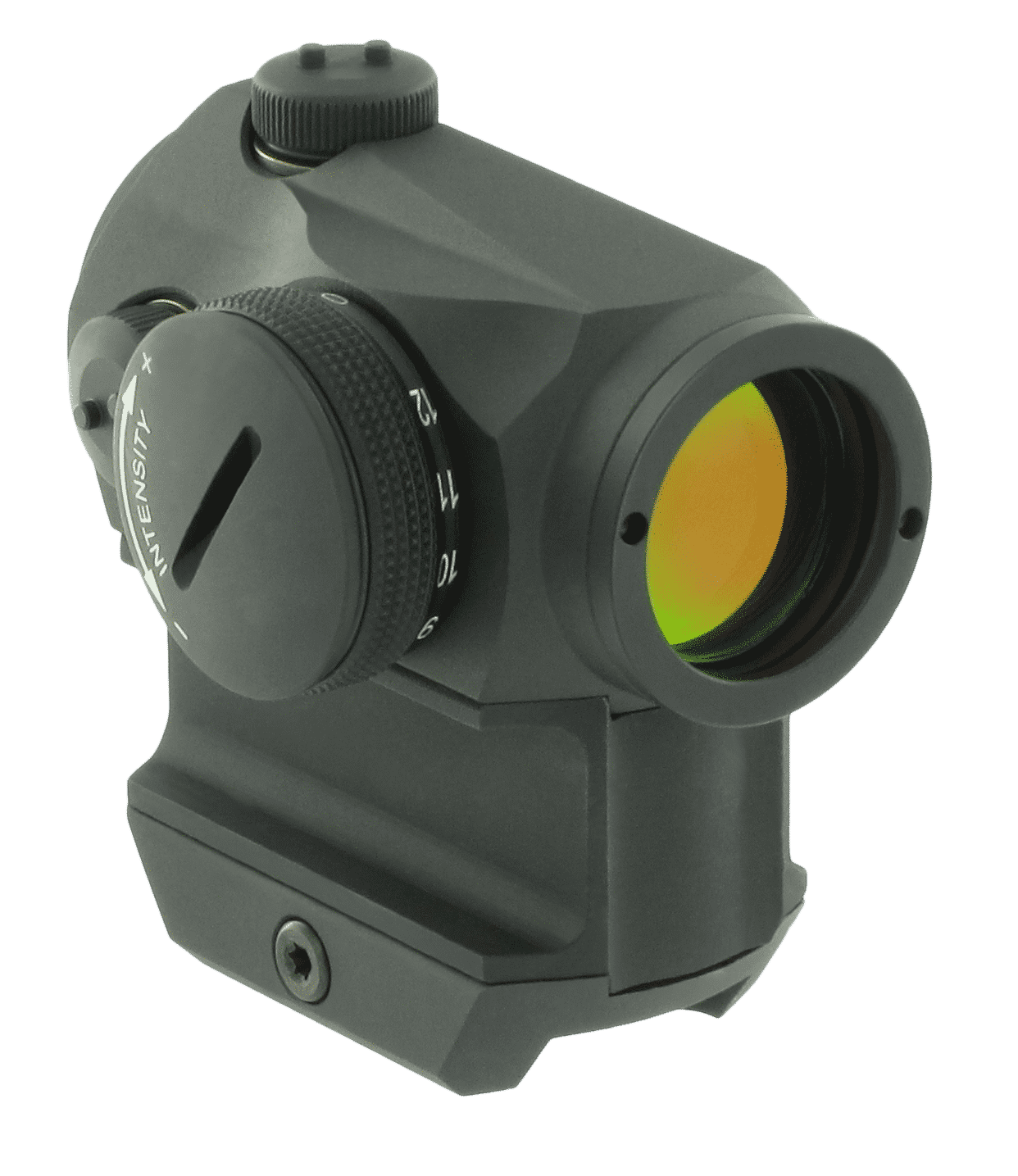

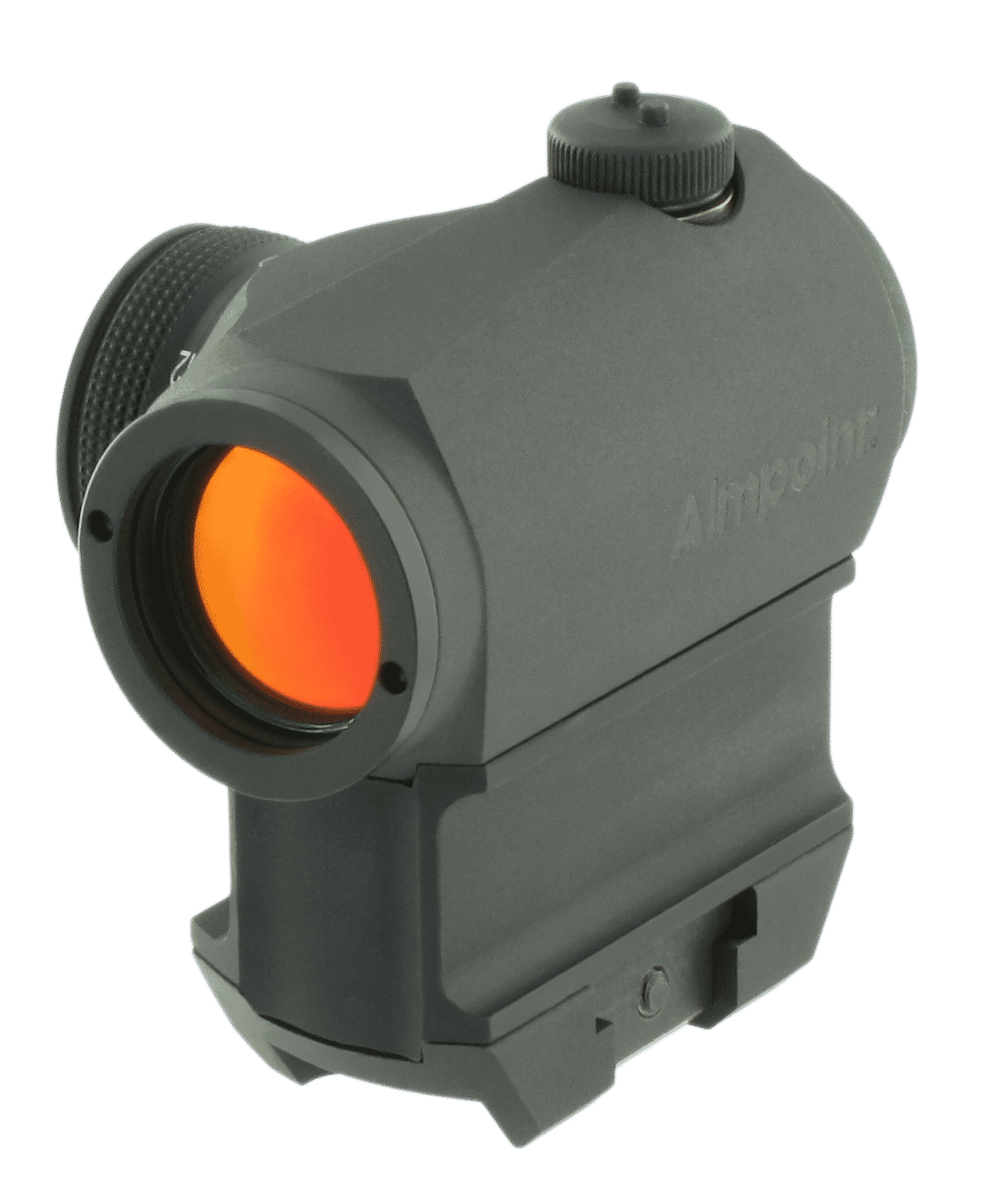

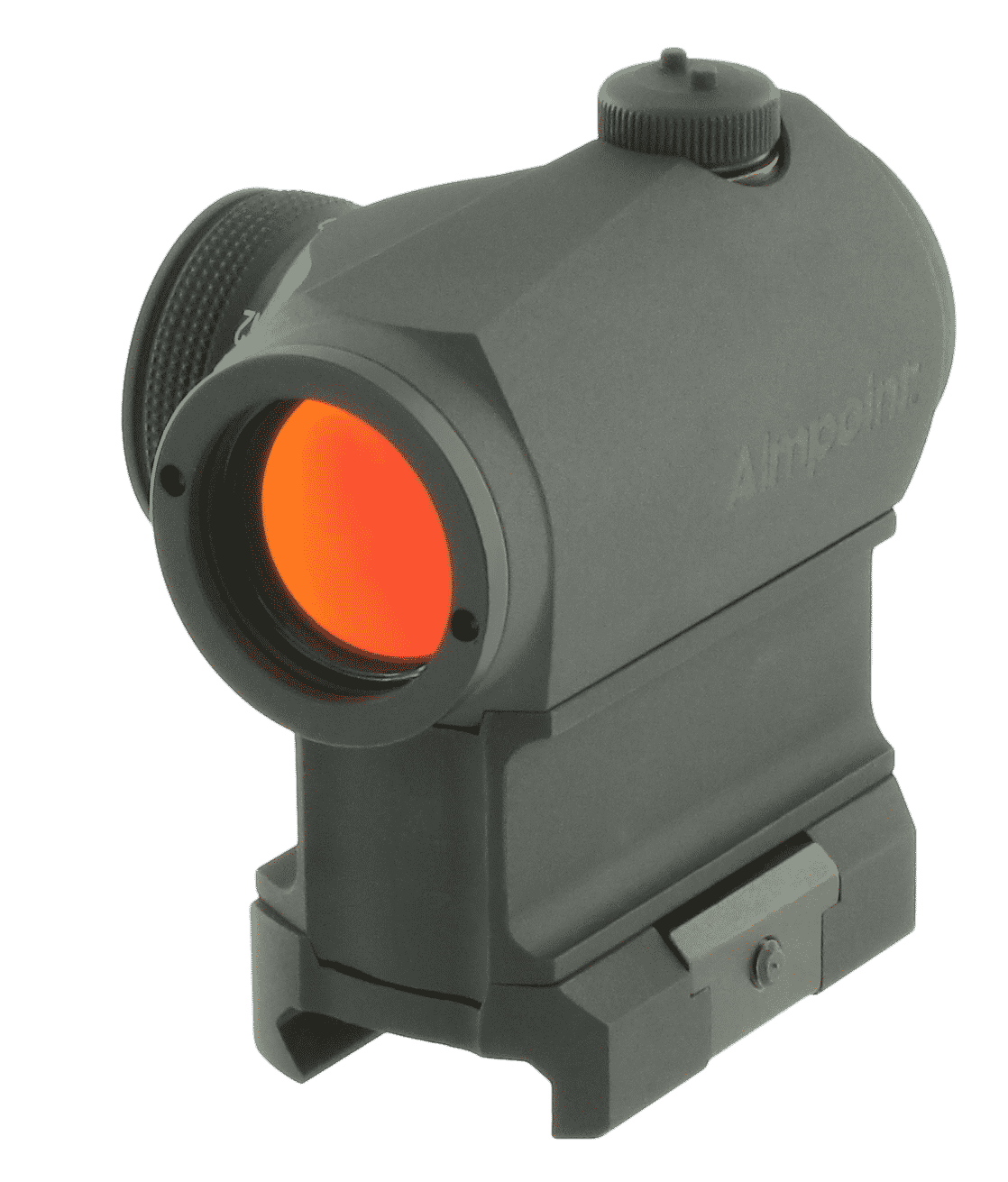

Micro Spacer High - 39mm:(+45$)
Raises height of optical axis to 39 mm for co-witness with AR-15.
Four screws (torx), Micro Tool and thread lock included.
